LiFePO4 battery pack

  • 24V 60Ah Robotic LiFePO4 battery pack
  • 24V 60Ah Robotic LiFePO4 battery pack
  • 24V 60Ah Robotic LiFePO4 battery pack
24V 60Ah Robotic LiFePO4 battery pack24V 60Ah Robotic LiFePO4 battery pack24V 60Ah Robotic LiFePO4 battery pack

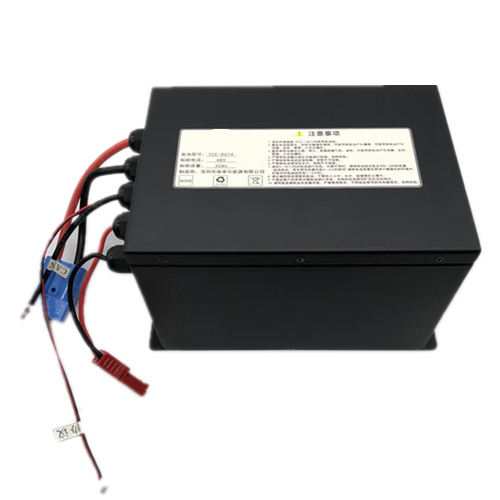

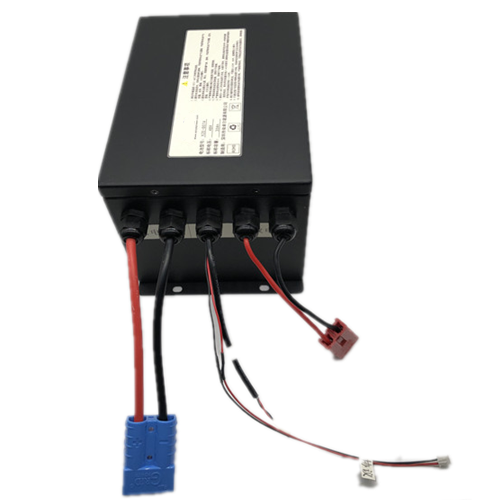

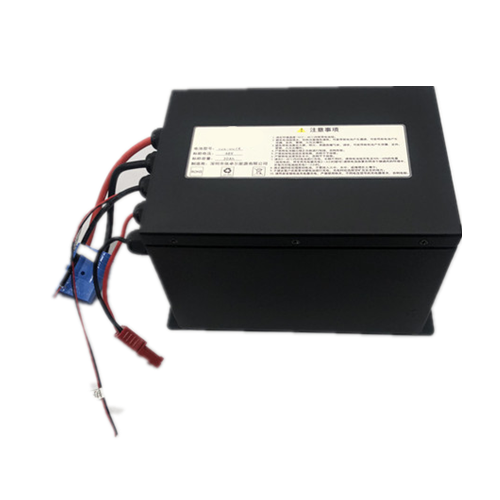

24V 60Ah Robotic LiFePO4 battery pack

  • Model: 24V 60Ah
  • Dimensions: 370×300×280mm
  • Weight: 13.7Kg
  • MOQ: 10pcs
  • Product description: 24V 60AH LiFePO4 battery for logistic robotic
  • INQUIRY   EMAIL

No.

Item

General Parameter

Remark

1

Rated Capacity

60.0Ah

Standard discharge0.2 C5after standard charge0.2 C5

2

Minimal Rated

Capacity

57.0Ah

3

Nominal Voltage

25.6V


4

Cycle Life

Higher than 80% of the Initial Capacity of the Cells

Charge: CC @ 0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 10.0V

Temperature:20±5

Carry out 2000cycles

5

Discharge cut-off voltage

20.0V


6

Charging voltage

29.2V


7

Housing material

Metal


8

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage CV14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

9

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V


10

Maximum Charge Current

0.2C


11

Continuous Discharge Current

0.5C

Peak: 1C

12

Operation Temperature Range

Charge: 0~55℃

60±25%R.H.

Discharge: -20~60℃

13

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months : -5~35℃

14

Weight

Approx: 13.7Kg


15

Max.Dimension

High: 280mm




Width: 300mm




Length: 370mm



Inquiry
