电池组

  • 6S3P 22.2V 9Ah 锂离子电池组
  • 6S3P 22.2V 9Ah 锂离子电池组
  • 6S3P 22.2V 9Ah 锂离子电池组

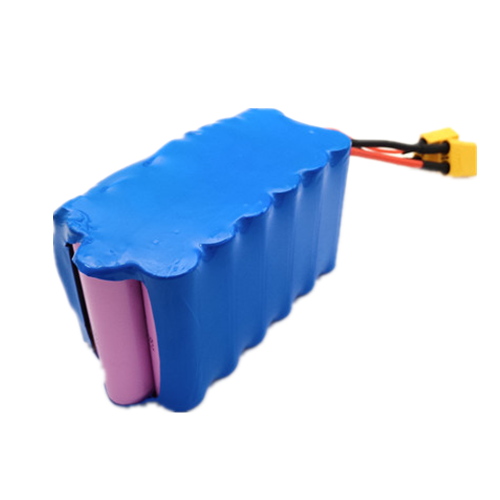

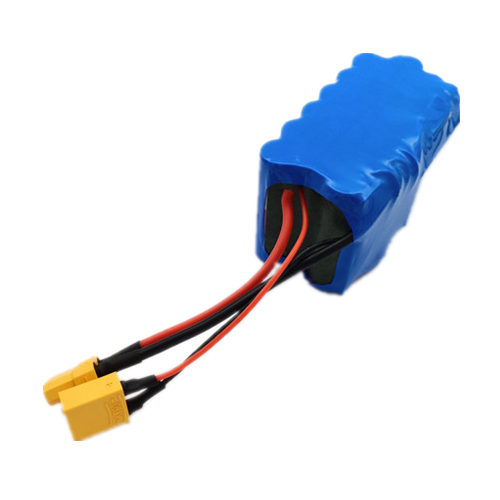

6S3P 22.2V 9Ah 锂离子电池组   6S3P 22.2V 9Ah 锂离子电池组   6S3P 22.2V 9Ah 锂离子电池组

6S3P 22.2V 9Ah 锂离子电池组

  • 型号:6S3P 22.2V 9Ah
  • 尺寸: 135×60×70mm
  • 重量: 900g
  • MOQ: 100pcs
  • 产品描述: 6S3P 22.2V 9Ah Rechargeable lithium ion battery pack
  • 在线订购   邮箱L

No.

Item

General Parameter

Remark

1

Charge Voltage

25.2±0.02V

Charge mode: CC/CV

2

Nominal Voltage

22.2V


3

Capacity

Nominal

9.0Ah

Standard discharge0.2C5A,16.5V) after Standard charge.

Minimum

8.95Ah

4

Cycle Life

500 Times

One cycle refer to one charge period and then one discharge period.

Test condition:

Charge: 0.2C to 25.2V.

Discharge: 0.2C to 16.5V.

The cycle life is the cycle times when the discharge capacity is about 70% of the rated capacity.

5

Internal Impedance

≤180

After standard charging, measure the internal resistance with AC1KHz.

6

Standard  Charge

0.2C5A



7

Max Continuous Charge

1.0C5A



8

Continuous Discharge

0.2C5A



9

Max Continuous Discharge

1.0C5A




No.

Item

General Parameter

Remark

10

Discharge Cut-off Voltage

16.5V


11

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Discharge: -20~60℃

12

Storage Temperature Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state

Less than 3 months: -20~45

Less than 1 month : -20~60

13

Weight

Approx:900g


14

Pack Dimension

T: 70.0mm Max

W: 60.0mm Max

L: 135.0mm Max
