磷酸铁锂电池组

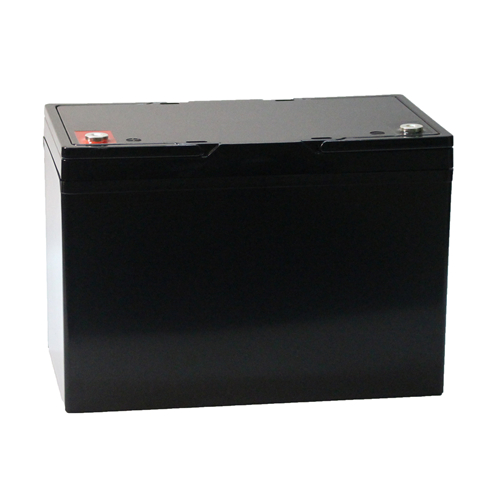

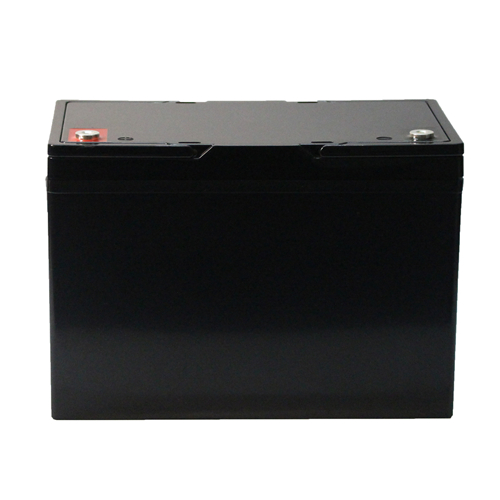

  • 12V 100Ah 磷酸铁锂电池组 -
  • 12V 100Ah 磷酸铁锂电池组 -
12V 100Ah 磷酸铁锂电池组 -12V 100Ah 磷酸铁锂电池组 -

12V 100Ah 磷酸铁锂电池组 -

  • 型号:12V 100Ah
  • 尺寸: 330×173×215mm
  • 重量: 12.5Kg
  • MOQ: 10pcs
  • 产品描述: 12V 100Ah 磷酸铁锂电池组
  • 在线订购   邮箱L

No.

Item

General Parameter

Remark

1

Rated Capacity

100.0Ah

Standard discharge0.2 C5after standard charge0.2 C5

2

Minimal Rated

Capacity

95.0Ah

3

Nominal Voltage

12.8V


4

Cycle Life

Higher than 80% of the Initial Capacity of the Cells

Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

Rest: 30min.

Discharge: 0.2C to 9.2V

Temperature:20±5

Carry out 2000cycles

5

Discharge cut-off voltage

9.2V


6

Charging voltage

14.6V


7

Housing material

ABS+PC housing


8

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage CV14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

9

Standard discharge

Constant current 0.2C

Cut-off voltage 9.2V


10

Maximum Charge Current

0.2C


11

Continuous Discharge Current

0.5C

Peak: 1C

12

Operation Temperature Range

Charge: 0~55℃

60±25%R.H.

Discharge: -20~60℃

13

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months : -5~35℃

14

Weight

Approx: 12.5Kg


15

Max.Dimension

Height: 215mm




Width: 173mm




Length: 330mm



在线订购
